Cofferdams: Structure and Function

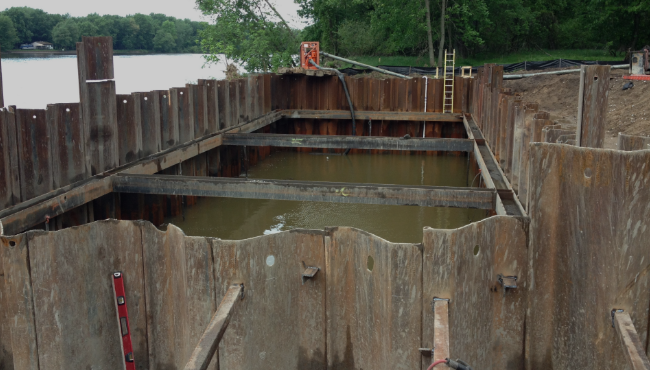

Cofferdams Florida, are a fully enclosed temporary or permanent structure made with interlocking steel sheets or interlocking vinyl sheets, depending on the size of the cofferdam. It is designed to provide a dry working environment by retaining surrounding soil and water. Cofferdams are commonly used in marine construction, foundation excavation, and infrastructure projects such as bridge piers and dams.
Cofferdam sheet pile

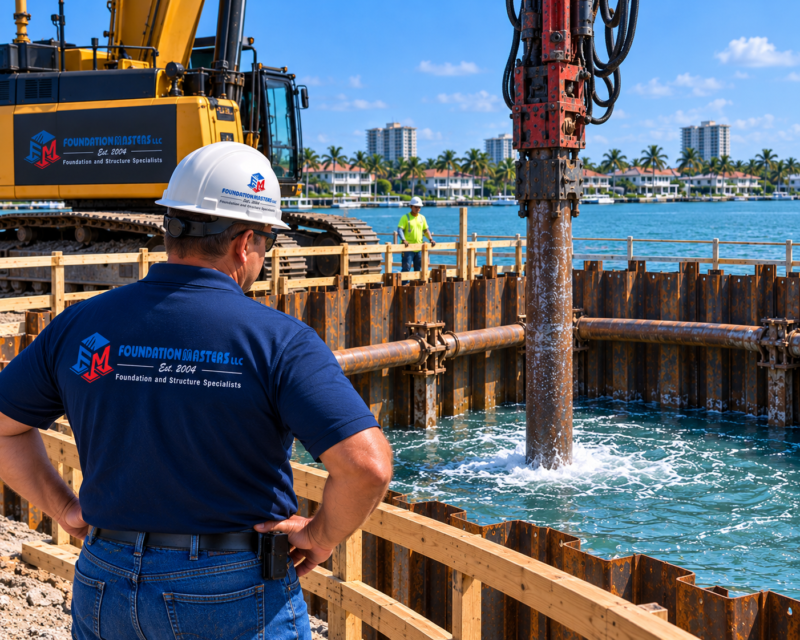

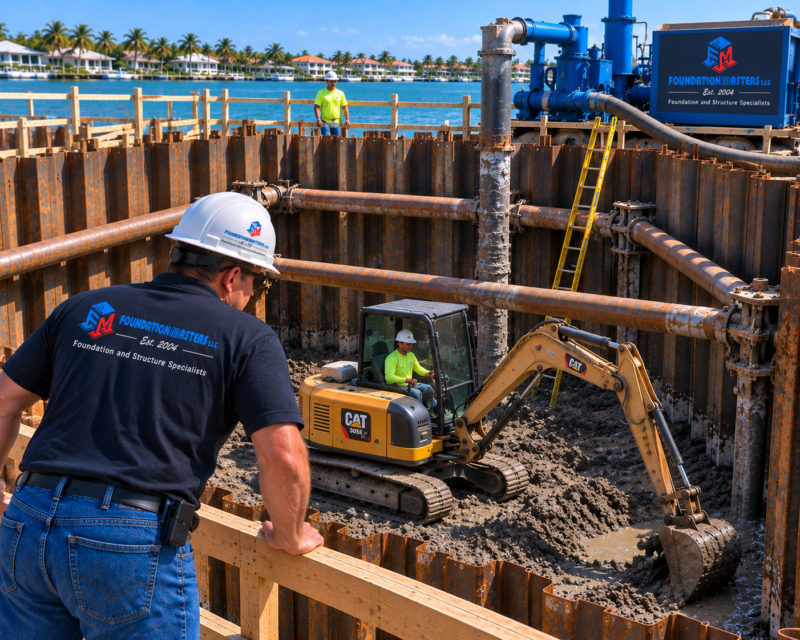

Steel sheet piling can be installed using vibratory hammers, impact hammers, or hydraulic presses, depending on soil conditions and project requirements. The interlocking sections create a watertight barrier, which can be reinforced with internal bracing systems such as walers and struts to withstand lateral earth and hydrostatic pressures. Depending on the design, the sheet piles may be extracted after project completion or left in place as a permanent structural element.

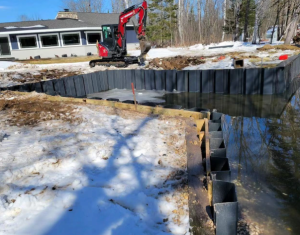

Small cofferdam Florida
Cofferdam Uses in Florida
In Florida, cofferdams play a crucial role in construction projects due to the state’s high water table, sandy soil conditions, and extensive coastline. They are widely used in:
• Marine Construction:
Cofferdams facilitate the installation of seawalls, docks, and piers by creating a dry workspace in submerged or coastal areas.
• Bridge and Highway Infrastructure:
Florida’s numerous waterways require cofferdams for the construction and maintenance of bridge piers, causeways, and culverts.
• Flood Control and Stormwater Management:
Temporary cofferdams help manage water flow during levee repairs, storm drain installations, and flood mitigation projects.
• Utility and Pipeline Installations:
Cofferdams provide a stable work area for underground utility lines, including water mains and sewer systems, especially in areas prone to groundwater intrusion.
• Environmental Protection and Containment:
In cases of contamination or dredging, cofferdams help isolate polluted sediments, preventing the spread of hazardous materials into Florida’s waterways.
• Mechanical Repairs and Replacements:
Cofferdams are essential for the maintenance and repair of submerged mechanical systems such as pumps, intake structures, turbine components, and drainage infrastructure, allowing for dry and controlled working conditions.
• Contaminated Soil Removal:
Cofferdams play a critical role in environmental remediation projects involving contaminated soil removal. In Florida, where industrial activities, stormwater runoff, and coastal erosion can lead to soil pollution, cofferdams provide a controlled method for excavation and containment. Key applications include:
• Hazardous Waste Cleanup:
Cofferdams create a sealed work area, preventing the spread of contaminants during excavation and disposal.
• Petroleum and Chemical Spill Remediation:
In cases of underground storage tank leaks or industrial spills, cofferdams isolate affected soil, allowing for safe removal and treatment.
• Dredging and Sediment Management:
Contaminated sediments from lakes, rivers, and harbors can be safely removed without dispersing pollutants into surrounding waters.
• Brownfield Redevelopment:
When developing former industrial or commercial sites with known contamination, cofferdams help stabilize excavation zones, ensuring safe removal of toxic materials.
By providing an effective barrier against water intrusion and contaminant migration, cofferdams enhance the safety and efficiency of soil remediation efforts in Florida’s environmentally sensitive regions.
